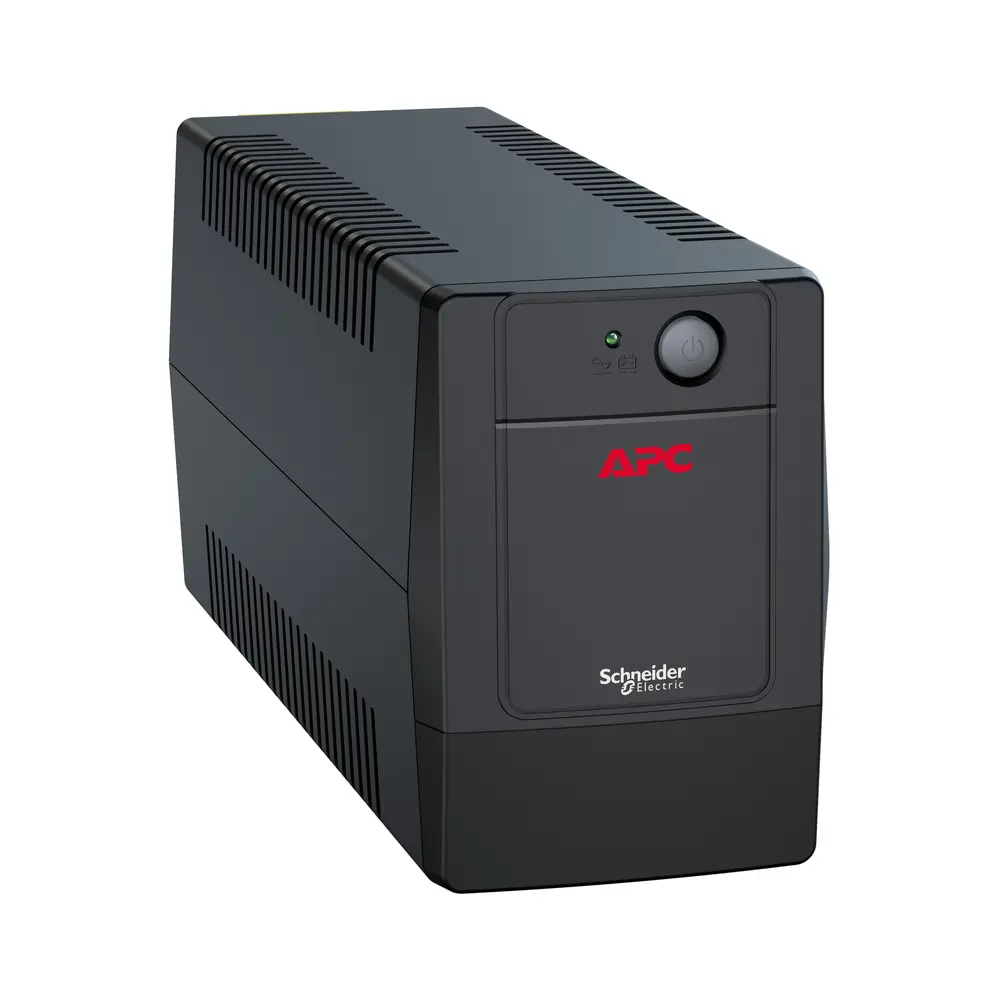

APC BVG700I-MSX Easy UPS 700VA, Tower, 230V, 2 Universal Outlets, AVR
Model: BVG700I-MSX
This APC Easy UPS offers reliable power backup and surge protection for your home and home office devices, helping you stay connected. With the 700VA line interactive UPS, the essential electronic devices will have a steady network connection, reliable uptime, and clean power. The tower UPS comes with a UK input plug and 2 Universal outlets that provide both battery backup and surge-protection. This Uninterrupted Power Supply has a surge energy rating of 156 Joules. The auto-restart function automatically restarts the UPS while the mains recover following a full battery discharge. The battery self-diagnosis notifies you with the appropriate alarm based on the battery status. The generator compatible UPS allows optimal performance in specific power environments or generator applications.
Specifications
Main
|
|
|
|
| Main Input Voltage |
220…240 V AC 1 phase |
| Input Connection Type |
British 3.2 A |
| Input protection type |
Circuit breaker |
| Network frequency |
50/60 Hz +/- 5 Hz indoor use only |
| Output voltage |
230 V AC 1 phase |
| Rated power in W |
360 W |
| Rated power in VA |
700 VA |
| Output connection type |
4 |
| Output connector type |
Universal |
| Maximum configurable power in W |
255 W |
| Output voltage tolerance |
+/- 10 % |
| Transfer time |
6 ms typical : 10 ms maximum |
| UPS type |
Line interactive |
| Wave type |
Stepped approximation to a sinewave |
| Full load runtime |
00:00:01 360 W |
| Half load runtime |
00:05:00 180 W |
Complementary
| Battery type |
VRLA |
| Extended runtime |
0 |
| Number of battery replacement quantity |
0 |
| Battery design life |
3…5 year(s) |
| Battery life |
3…5 year(s) |
| Battery charger power |
14 W indoor use only |
| Battery type |
Lead-acid internal included |
| Control panel |
LED Status display with on line : on battery |
| Emergency power off |
No |
| Alarm |
Alarm when on battery : distinctive low battery alarm : high temperature : overload continuous tone alarm |
| Surge energy rate |
156 J |
| Colour |
Black |
| Height |
142 mm |
| Width |
101 mm |
| Depth |
300 mm |
| Net weight |
4.2 kg |
| USB compatible |
No |
| Mounting mode |
Desktop installation compact |
| Max runtime |
0.01 min |
| Range of product |
Easy UPS |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-15…45 °C |
| Storage altitude |
0…3000 m |
| IP degree of protection |
IP20 indoor use only |
| Relative humidity |
0…95 % non-condensing |
| Storage Relative Humidity |
0…95 % non-condensing |
| Acoustic level |
< 40 dBA |
| Operating altitude |
0…3000 m |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
14.2 cm |
| Package 1 Width |
10.1 cm |
| Package 1 Length |
30 cm |
| Package 1 Weight |
4.2 kg |
| SCC14 |
10731304769641 |
Contractual warranty
| Warranty (in months) |
24 UPS |
